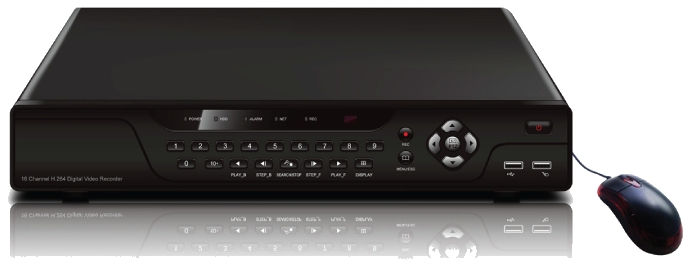

DVR-D924D

Главная » Продукция » Регистраторы » Аналоговые » DVR-D924D

DVR-D924D

Pentaplex, 2хHDD-ready, LAN, 24хBNC, USB, SD-card

уточняйте

Основные характеристики DVR-D924D

DVR-D924D, Pentaplex, 2хHDD-ready, LAN, 24хBNC, USB, SD-card15000руб.

Model D924D
System Operating System Embedded LINUX
System Resources Pentaplex function:live,recording,playback,backup,remote access
Interface Operation Interface GUI,on-screen menu tips
Display Interface 1/4/8/24
Video Video Standard PAL 625Line,50f/s,NTSC 525 Line,60f/s
Video Resolution Standard D1,VGA high definition output
Playback Resolution D1:PAL 1fps-25fps NTSC 1fps-30fps
Encode capacity 200/240fps(CIF)
Motion Detection Zones:396(22*18)detection zones,Sensitivity:1-6(6 is highest)Trigger recording ,PTZ movement, tour, alarm, email, snapshot & FTP
Audio Audio compression G711A
Bi-directional Talk Support
Record&Playback Recording mode Manual, Alarm, Video Detection, Continuous
Playback Multi channels playback simultaneously, pause, stop, rewind, fast play, slow play, next file, previous file, repeat, shuffle, backup selection
Search Mode Time, Date, Alarm, Motion Detection and exact search
Storage&Back up Space Occupation Audio 28.8MB/H, Video25~450MB/H
Record storage Local hard disk, SD card, Network, Movable HDD&DVD-RW
Backup Mode Network download/Flash stick/Movable HDD/DVD-RW
Interface Video Input 24 Channel
Video Output 2CH BNC Output(1 for main output,1 for tour output),1CH High Definition VGA output
Loop output N/A
SD Card Support(Max 32G)
Audio Input 8 Channel
Audio Output 1 Channel
Alarm Input 8 Channel
Alarm Output 1 Channel
Net Interface RJ-45(10M/100M)
PTZ Control 1 Rs485,1Rs232
USB Interface 2 USB2.0
Hard Disk 2 SATA HDD(Max 2*2048G)
Environmental Power Supply 12V/7A
Power Consumption <15W(not include Hard Disk)
Working Temperature -10℃-＋55℃
Working Humidity 10%-90%
Atmosphere Pressure 86kpa-106kpa
Dimension 440*407*79.5mm
Weight 5.5kg
