DVR-D816B

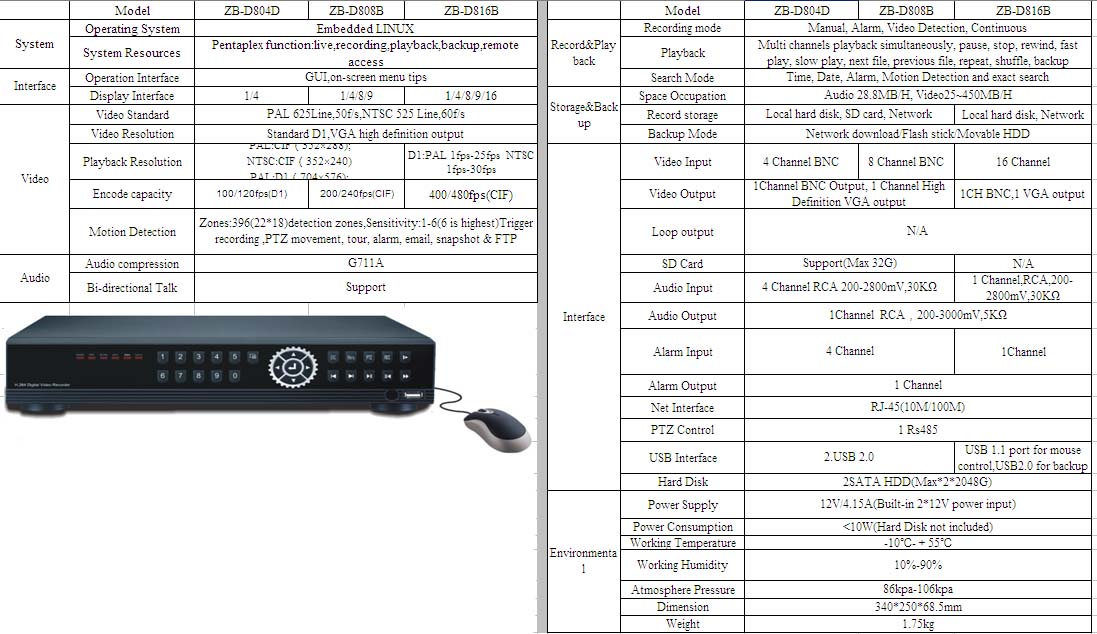

Основные характеристики DVR-D816B
DVR-D816B, Pentaplex, 2хHDD-ready, LAN, 16хBNC, USB 6750руб.
Model D816B
System Operating System Embedded LINUX
System Resources Pentaplex function:live,recording,playback,backup,remote access
Interface Operation Interface GUI,on-screen menu tips
Display Interface 1/4/8/9/16
Video Video Standard PAL 625Line,50f/s,NTSC 525 Line,60f/s
Video Resolution Standard D1,VGA high definition output
Playback Resolution D1:PAL 1fps-25fps NTSC 1fps-30fps
Encode capacity 400/480fps(CIF)
Motion Detection Zones:396(22*18)detection zones,Sensitivity:1-6(6 is highest)Trigger recording ,PTZ movement, tour, alarm, email, snapshot & FTP
Audio Audio compression G711A
Bi-directional Talk Support
Record&Playback Recording mode Manual, Alarm, Video Detection, Continuous
Playback Multi channels playback simultaneously, pause, stop, rewind, fast play, slow play, next file, previous file, repeat, shuffle, backup selection
Search Mode Time, Date, Alarm, Motion Detection and exact search
Storage&Back up Space Occupation Audio 28.8MB/H, Video25~450MB/H
Record storage Local hard disk, Network
Backup Mode Network download/Flash stick/Movable HDD
Interface Video Input 16 Channel
Video Output 1CH BNC,1 VGA output
Loop output N/A
SD Card N/A
Audio Input 1 Channel,RCA,200-2800mV,30KΩ
Audio Output 1Channel RCA，200-3000mV,5KΩ
Alarm Input 1Channel
Alarm Output 1 Channel
Net Interface RJ-45(10M/100M)
PTZ Control 1 Rs485
USB Interface USB 1.1 port for mouse control,USB2.0 for backup
Hard Disk 2SATA HDD(Max*2*2048G)
Environmental Power Supply 12V/4.15A(Built-in 2*12V power input)
Power Consumption <10W(Hard Disk not included)
Working Temperature -10℃-＋55℃
Working Humidity 10%-90%
Atmosphere Pressure 86kpa-106kpa
Dimension 340*250*68.5mm
Weight 1.75kg
